How to Choose the Right Type of Switch for Your Villa?

Comparing Different Types of Wall Switch Wiring

Wall switches are crucial components of a home’s electrical system. Different wiring configurations cater to varying needs. In this article, we'll delve into three common types: double wall switch wiring, 3-way switch wiring, and standard wall switch wiring, helping you determine the ultimate setup for your needs.

1. Double Wall Switch Wiring

Double wall switch wiring is commonly used to control two independent fixtures or devices from one panel. Key features include:

• Structure: This configuration features two separate switches, each controlling an individual device. The switch panel has two switch openings.

• Installation: Wiring involves connecting the power and load lines to each switch independently. Each switch has its own set of wires.

• Advantages: Provides the convenience of controlling multiple devices from a single panel, ideal for controlling different lights or appliances simultaneously.

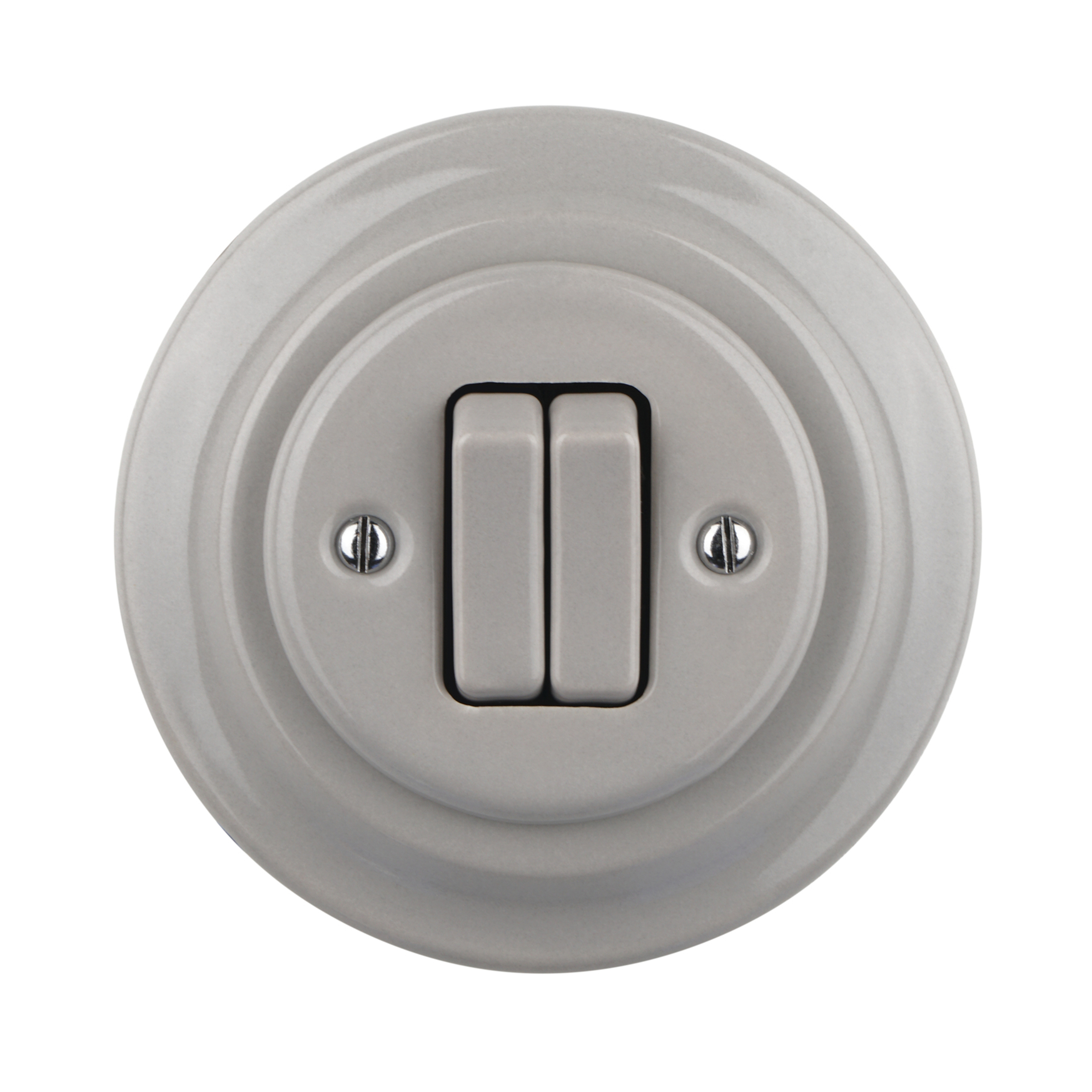

                 2 Gang Switch

2. 3-Way Wall Switch Wiring

The 3-way switch wiring allows for controlling a single fixture or light from two different locations. Key features include:

• Structure: Involves two 3-way switches connected by a series of traveler wires. This setup allows control of a single light or fixture from two separate locations.

• Installation: Requires connecting two 3-way switches to the power source and the fixture, following a specific wiring diagram. The layout is more complex.

• Advantages: Ideal for large rooms, long hallways, or staircases where you need to control the same light from multiple locations, enhancing convenience.

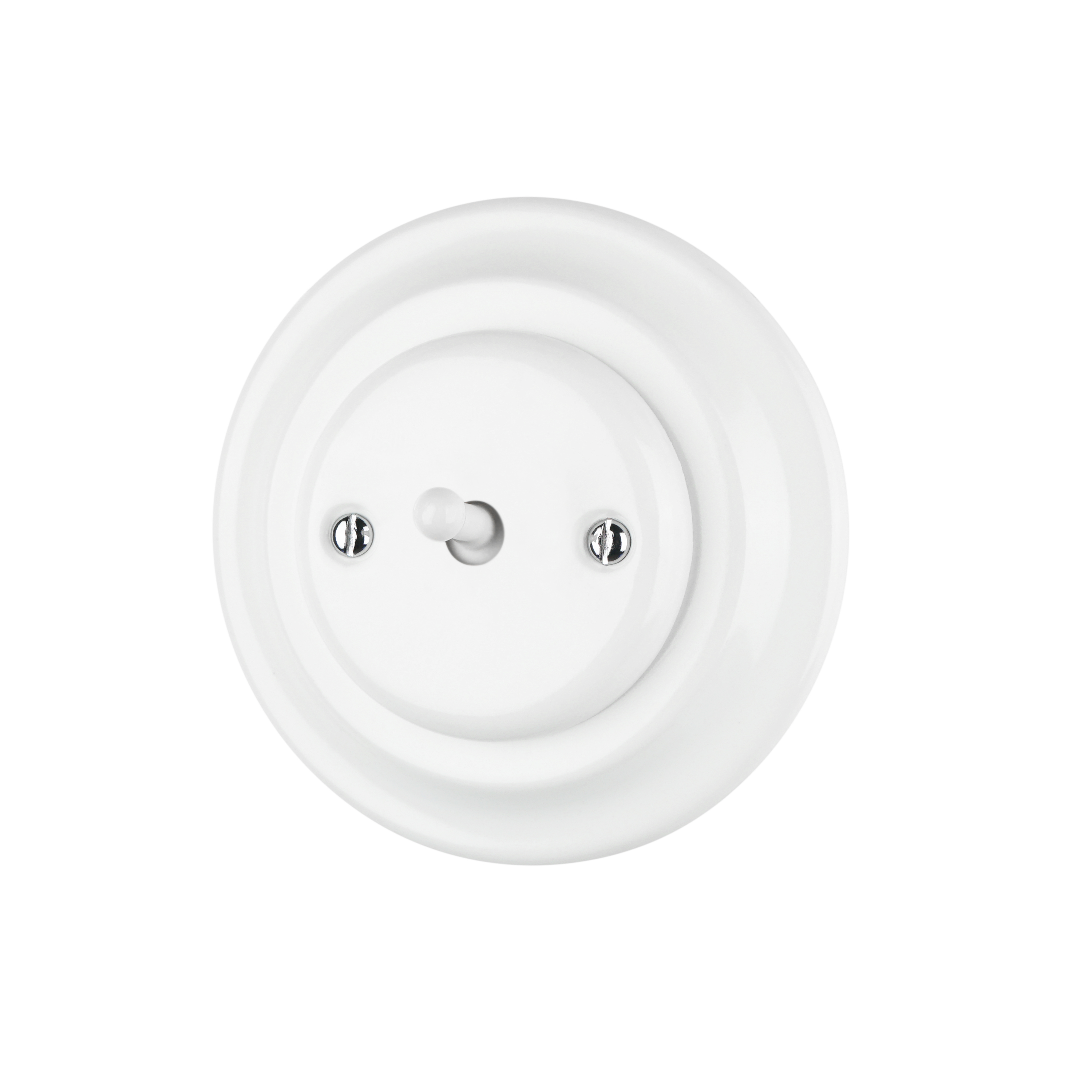

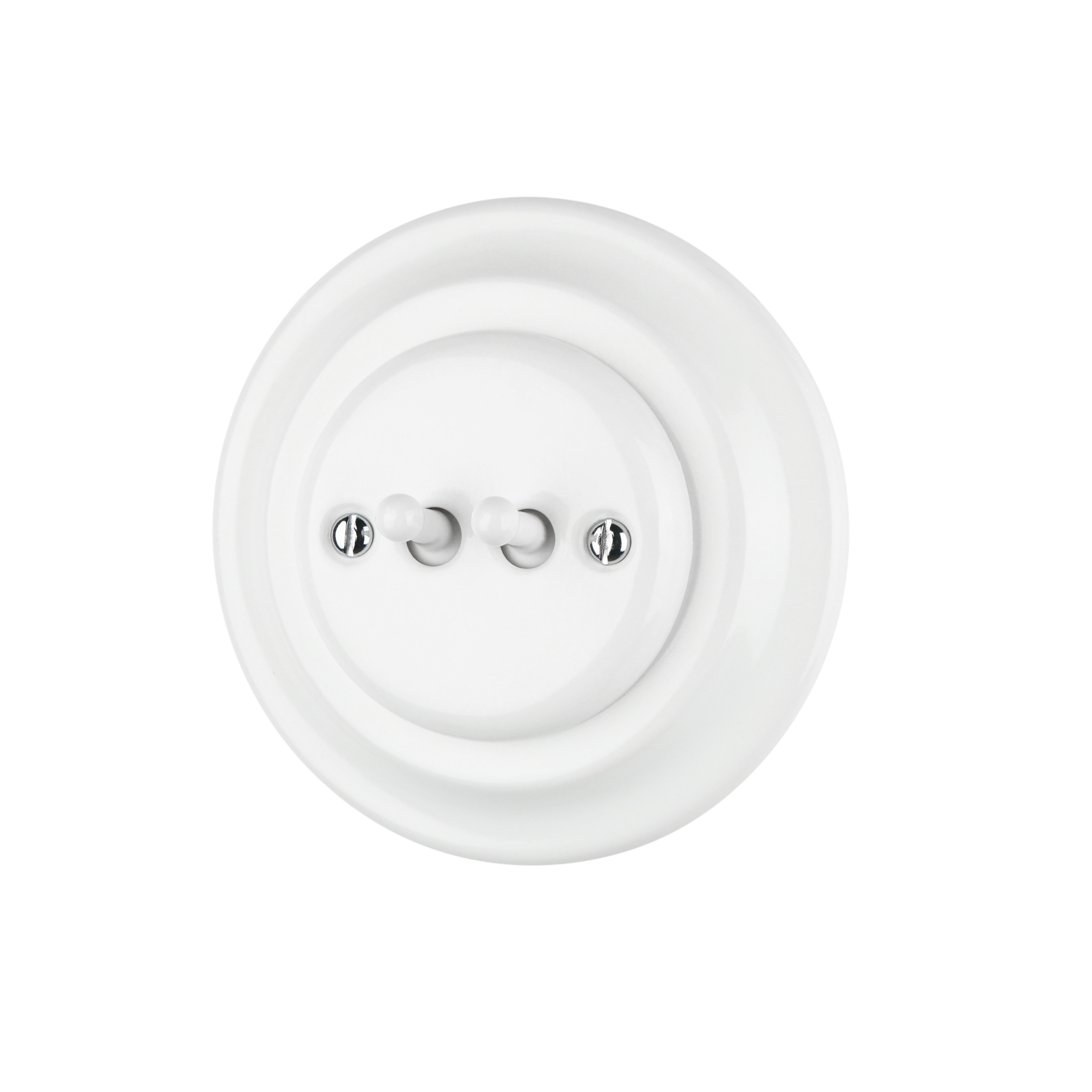

        1 Gang 2 Way                    2 Gang 2 Way

3. Standard Wall Switch Wiring

Standard wall switch wiring is the most straightforward type, controlling a single fixture or device. Key features include:

• Structure: Consists of a single switch controlling a single circuit. The switch panel has only one switch opening.

• Installation: Simple and direct; the power and load lines are connected to the switch terminals.

• Advantages: Economical and easy to install, suitable for basic applications where only one switch is needed, such as in small rooms or bedrooms.

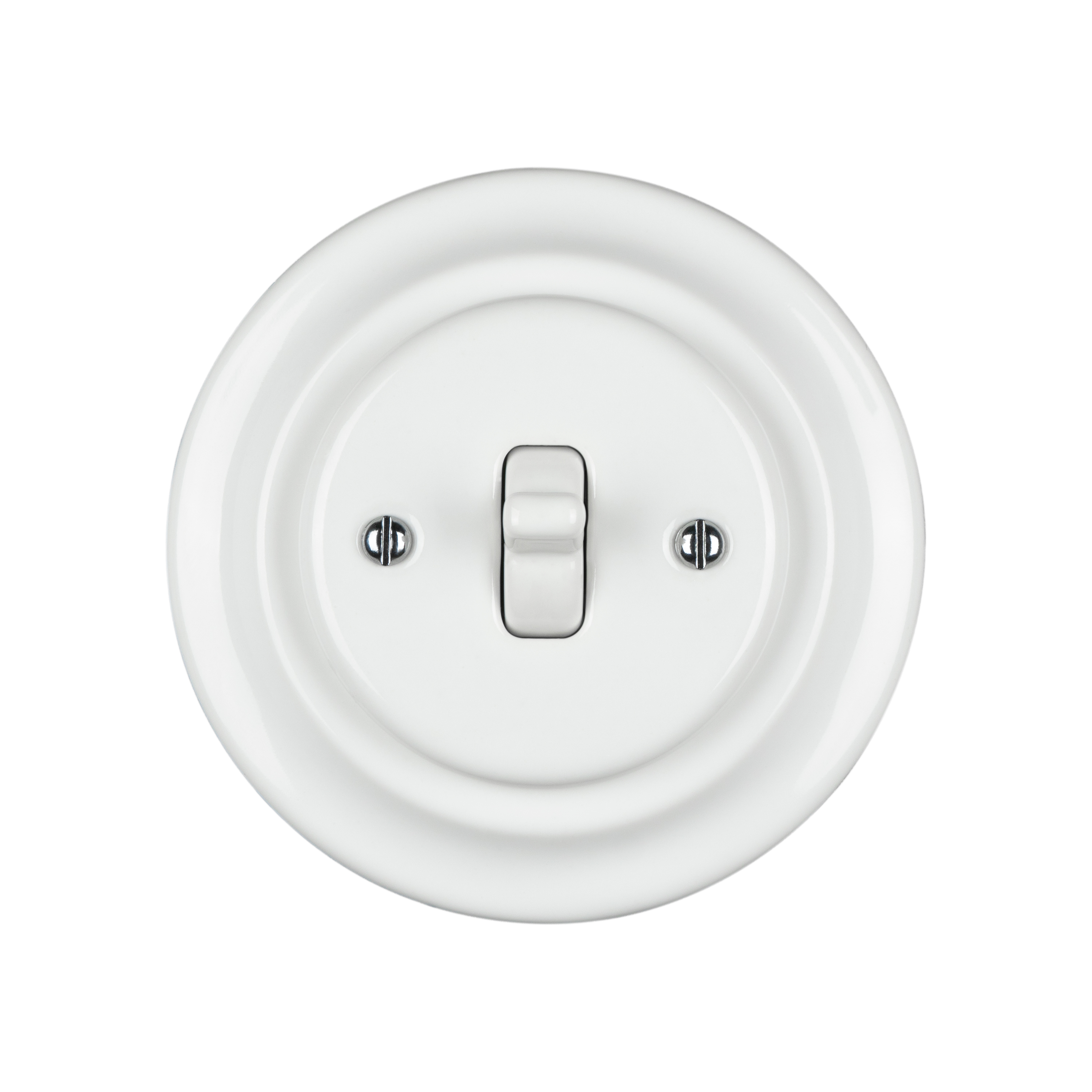

          1 Gang 1Way

Choosing the Right Type

Choosing the appropriate switch wiring depends on your specific requirements:

• Multiple Locations: For controlling a light from different locations, 3-way switches are the ultimate choice.

• Multiple Devices: If you need to control multiple devices, double wall switch wiring provides the flexibility you need.

• Simplicity: For straightforward setups, standard wall switch wiring is practical and cost-effective.

Understanding these different switch wiring types can help you make an informed decision, ensuring your electrical system is both functional and efficient.
